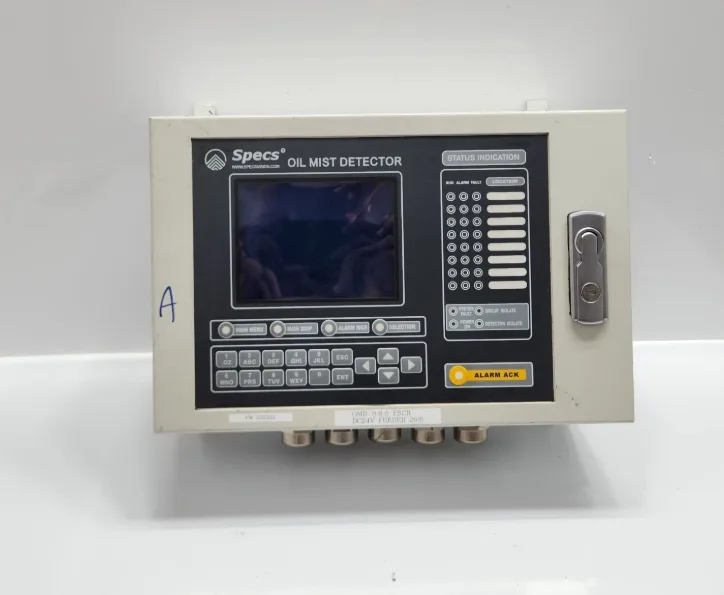

SPECS VISION-IIIR Oil Mist Detection System Remote Monitoring Unit
Product Overview
Wavetechmaritime supplies the SPECS VISION-IIIR Oil Mist Detection System Remote Monitoring Unit, a marine safety monitoring unit designed to centrally monitor oil mist levels from connected detectors. Wavetechmaritime provides SPECS VISION oil mist monitoring equipment for marine engine safety, alarm monitoring, maintenance and replacement applications.
- Brand: SPECS
- Manufacturer: SPECS Corporation
- System: VISION III
- Model: VISION-IIIR
Wavetechmaritime offers the SPECS VISION-IIIR Remote Monitoring Unit, a key component of the SPECS VISION oil mist detection system used for marine engine safety monitoring.
The VISION-IIIR functions as the central monitoring interface for connected oil mist detectors. It receives measurement information from the detectors, displays oil mist concentration and provides alarm and fault indications to operators. The VISION III system can monitor multiple detector points arranged across several groups.
The VISION-IIIR features a 6-inch monochrome LCD, RS-485/Modbus communication and event/history data storage. The documented system configuration supports up to 14 detectors per group and up to 8 groups, allowing centralized monitoring of up to 112 detector points.
The documented measuring range is 0–5.00 mg/L, with factory alarm settings of approximately 0.80 mg/L for pre-warning and 1.00 mg/L for mist-high/slow-down, with site adjustment possible within specified limits.
Wavetechmaritime supplies SPECS VISION-IIIR equipment for ship owners, marine engineers, shipyards and engine-maintenance teams requiring replacement or retrofit components for oil mist detection systems.
Before replacement, Wavetechmaritime recommends verifying the existing detector type, number of detector groups, communication configuration, power supply and complete VISION system configuration.
Key Features
- Brand: SPECS
- Manufacturer: SPECS Corporation
- System: VISION III
- Model: VISION-IIIR
- Product Type: Remote Monitoring Unit (RMU)
- Application: Oil Mist Detection
- Display: 6-inch monochrome LCD
- Measuring Range: 0–5.00 mg/L
- Maximum Detectors: 14 per group
- Maximum Groups: 8
- Maximum Monitoring Points: Up to 112
- Communication: RS-485 / Modbus
- Data Storage: Up to 3,000 events
- History Data: 12-hour measurement history at 10-second intervals
- Power Supply: 24 VDC
- Operating Temperature: 0–70°C
- Enclosure: IP44
- Mounting: Wall or flush mounting
- Weight: Approximately 6 kg
- Alarm Indication: Mist alarm, pre-warning and system fault functions
- Brand: SPECS
- Model: WTM-SPECS-VISION-IIIR
- Condition: Used
- Application:
- Marine engine oil mist detection
- Diesel engine safety monitoring
- Crankcase oil mist monitoring
- Main engine safety systems
- Auxiliary engine monitoring
- Marine alarm monitoring
- Engine-room safety systems
- Vessel automation
- Oil mist alarm systems
- Ship maintenance and retrofit projects
- Availability: Subject to stock confirmation
